Moor Instruments Installation Diagrams!

Click Here For Product Manuals

Click Link For Diagram
Apparent Wind Mast Casemount Diagram
Combination App Wind/Windspeed Mast Thru-Hull Mounting 1
Windspeed Cups Mounting  Thru-Hull Mounting 2
Long-Stem Transducer Speed Transmitter Location

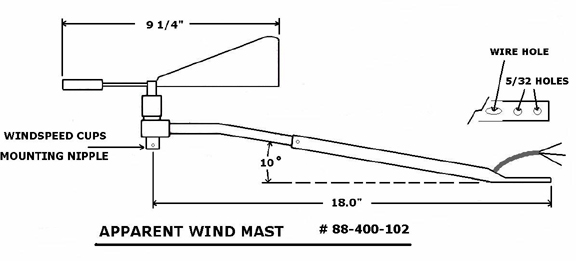

Apparent Wind Mast

back to top

Moor Apparent Wind Mast

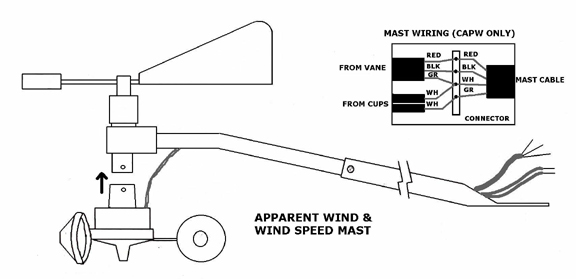

Combination Apparent Wind/Windspeed Mast

back to top

Apparent Wind/Windspeed Mast

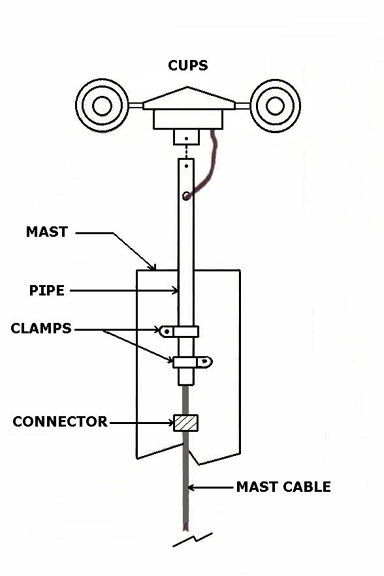

Windspeed Cups Mounting

back to top

Moor Windspeed Cups

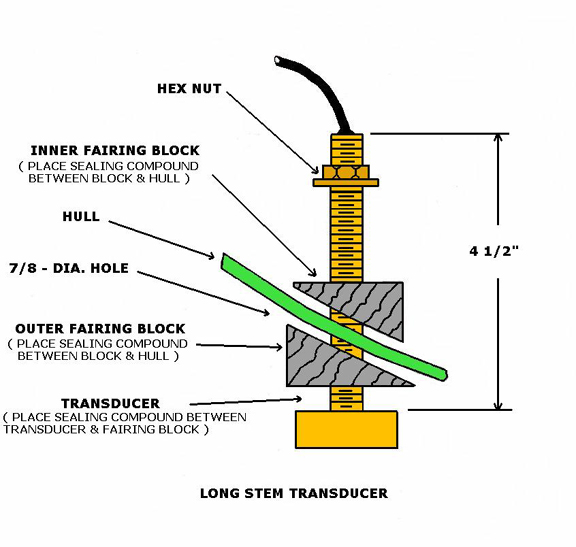

Long-Stem Transducer

back to top

Moor Long-Stem Transducer

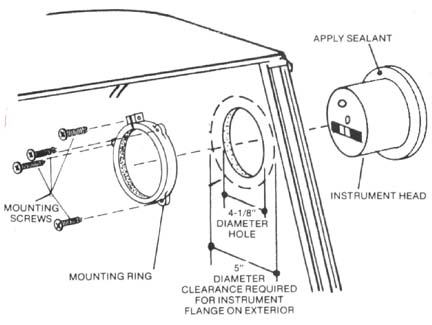

Case Mounting Diagram

back to top

Moor Casemount Diagram

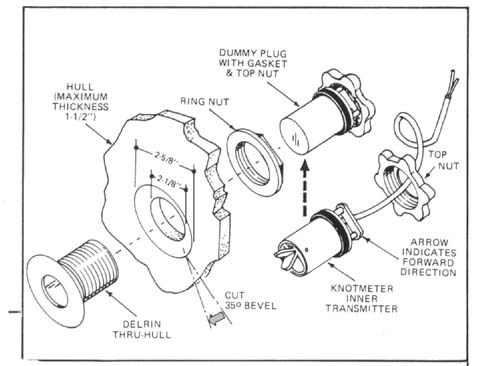

Thru-Hull Mount 1

back to top

Moor Thru-Hull Mount 1

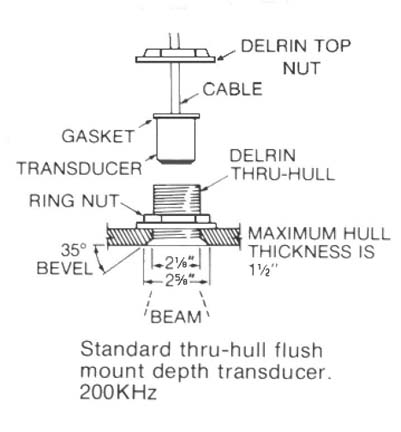

Thru-Hull Mount 2

back to top

Moor Thru-Hull Mount 2

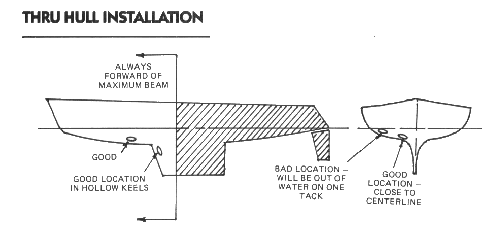

Speed Transmitter Location

back to top

Moor Speed Transmitter Location
